High-Precision In-Motion Weight Inspection for Industrial Packaging Lines
In modern high-speed manufacturing environments, weight accuracy is a critical quality parameter. Even small weight variations can lead to compliance risks, customer dissatisfaction, excess product giveaway, and financial loss.

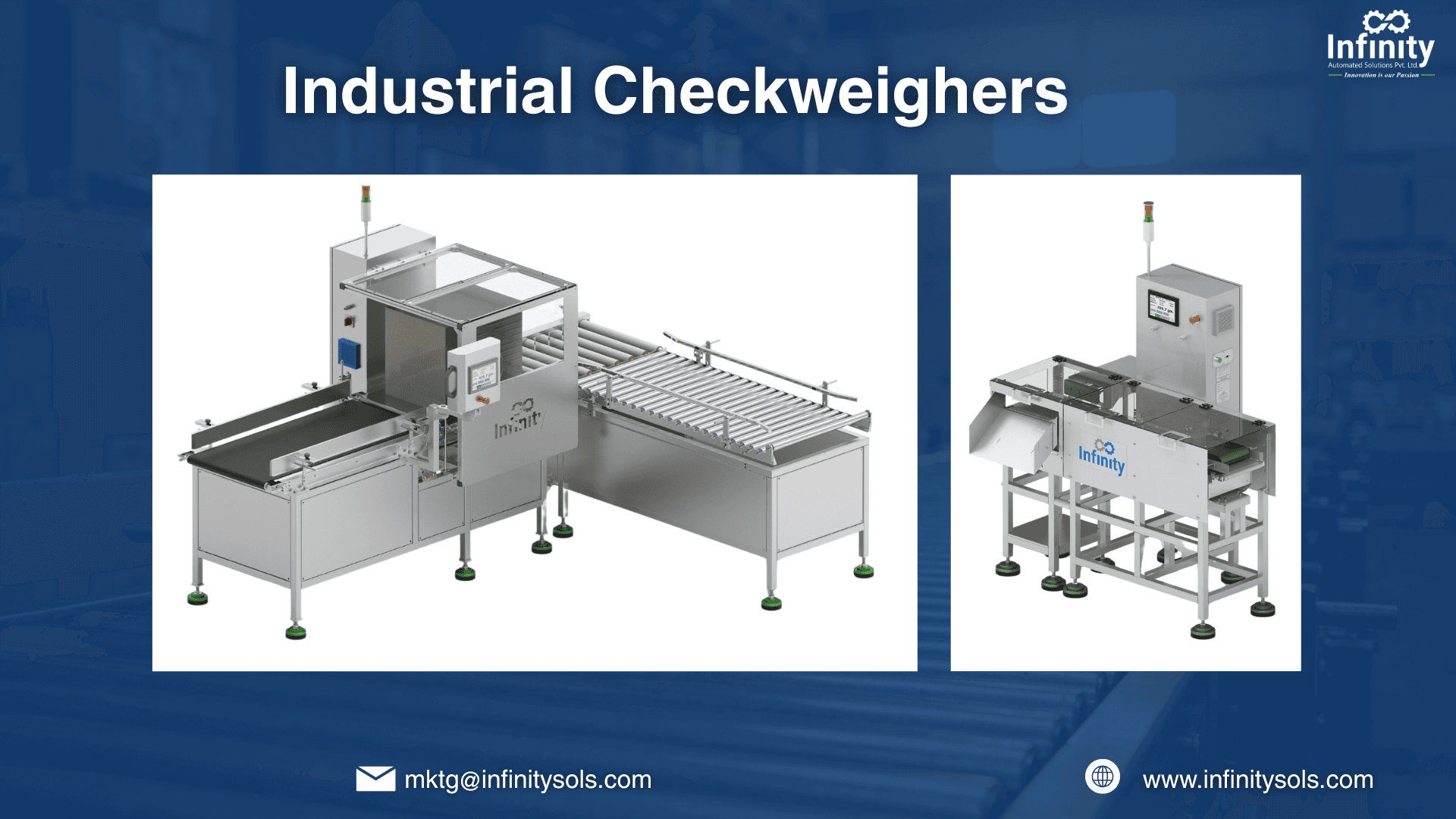

Infinity’s Checkweighers are engineered as advanced in-motion weighing systems that deliver precise, real-time weight inspection without interrupting production flow. This technical blog explains the system architecture, working principle, performance parameters, and integration capabilities in a structured content format suitable for WordPress.
Working Principle of an In-Motion Checkweigher
An in-motion checkweigher measures the weight of products while they are moving on a conveyor. Unlike static scales, the system does not stop the product.
When a product enters the infeed conveyor, it is properly spaced and guided onto the weigh conveyor. The high-precision load cell measures the dynamic weight within milliseconds. The digital controller compares this measured value with preset tolerance limits.
If the product weight falls outside the acceptable range, the system automatically activates the rejection mechanism. Compliant products continue forward in the packaging line without interruption.
This automated process ensures 100 percent inspection at production speeds.
Core Technical Components
Infinity’s checkweighers are built using industrial-grade components to ensure stable and repeatable performance.
The load cell acts as the primary sensing element. It converts mechanical force into electrical signals with high sensitivity and minimal drift.
The weigh conveyor is mechanically isolated to reduce vibration interference. This improves measurement stability even in heavy industrial environments.
The digital controller processes weight data in real time. Operators can configure target weight, upper and lower tolerance limits, and store multiple product recipes.
The system includes automated rejection units such as pusher-type or air-blast rejection systems, depending on product type and line speed.
Performance Parameters and Selection Criteria
When selecting a checkweigher for your plant, technical evaluation is essential.
Accuracy depends on product weight range, conveyor speed, and environmental conditions. Infinity systems are designed to maintain high repeatability across various production setups.
Throughput capacity is another key parameter. High-speed configurations are available for FMCG, food, and pharmaceutical applications where line efficiency is critical.
The product weight range must match your packaging application, whether handling lightweight sachets or heavy secondary cartons.
Environmental factors such as floor vibration and temperature stability also influence system performance. Infinity designs its systems to operate reliably under typical factory conditions.
Integration with Secondary Packaging Automation
Infinity specializes in complete secondary packaging and end-of-line Packaging automation solutions. Our checkweighers are engineered for seamless integration with case erectors, case sealers, shrink wrapping machines, pouch bundling systems, and conveyor networks.
The checkweigher can be positioned before secondary packaging to monitor primary packs or after case sealing to verify final carton weight. Placement depends on your quality control strategy.
Proper synchronization between conveyor speed and machine logic ensures smooth product transfer and prevents bottlenecks in the production line.
Compliance and Data Monitoring
Industries regulated by legal metrology and export standards require strict weight compliance. An automated checkweigher ensures that every unit dispatched meets declared weight specifications.
Infinity’s systems support real-time monitoring and production data tracking. This improves traceability and simplifies audit processes.
By reducing underfill complaints and minimizing overfill product giveaway, manufacturers achieve better regulatory compliance and improved cost control.
Installation and Maintenance Considerations
For optimal performance, proper installation planning is important. Adequate space for product spacing and rejection zones must be ensured. Conveyor alignment and stable power supply are essential for accurate readings.
Routine calibration and preventive maintenance help maintain long-term precision. Infinity systems are designed for easy cleaning, simple mechanical access, and minimal downtime.
Conclusion
Infinity’s Checkweighers are technically robust, high-precision inspection systems designed for demanding industrial packaging environments. They ensure reliable weight control, seamless automation integration, and improved operational efficiency.
For manufacturers seeking to upgrade their inspection capability, a properly engineered checkweigher is not just a quality control tool but a strategic investment in performance and compliance.
