QUALITY CONTROL SERIES
Checkweighers & Inspection Systems
Comprehensive range of dynamic checkweighers and advanced vision inspection systems for precise quality control across all industrial applications.
All Models Catalog
Complete range overview. Click for technical specs.Technical Specifications

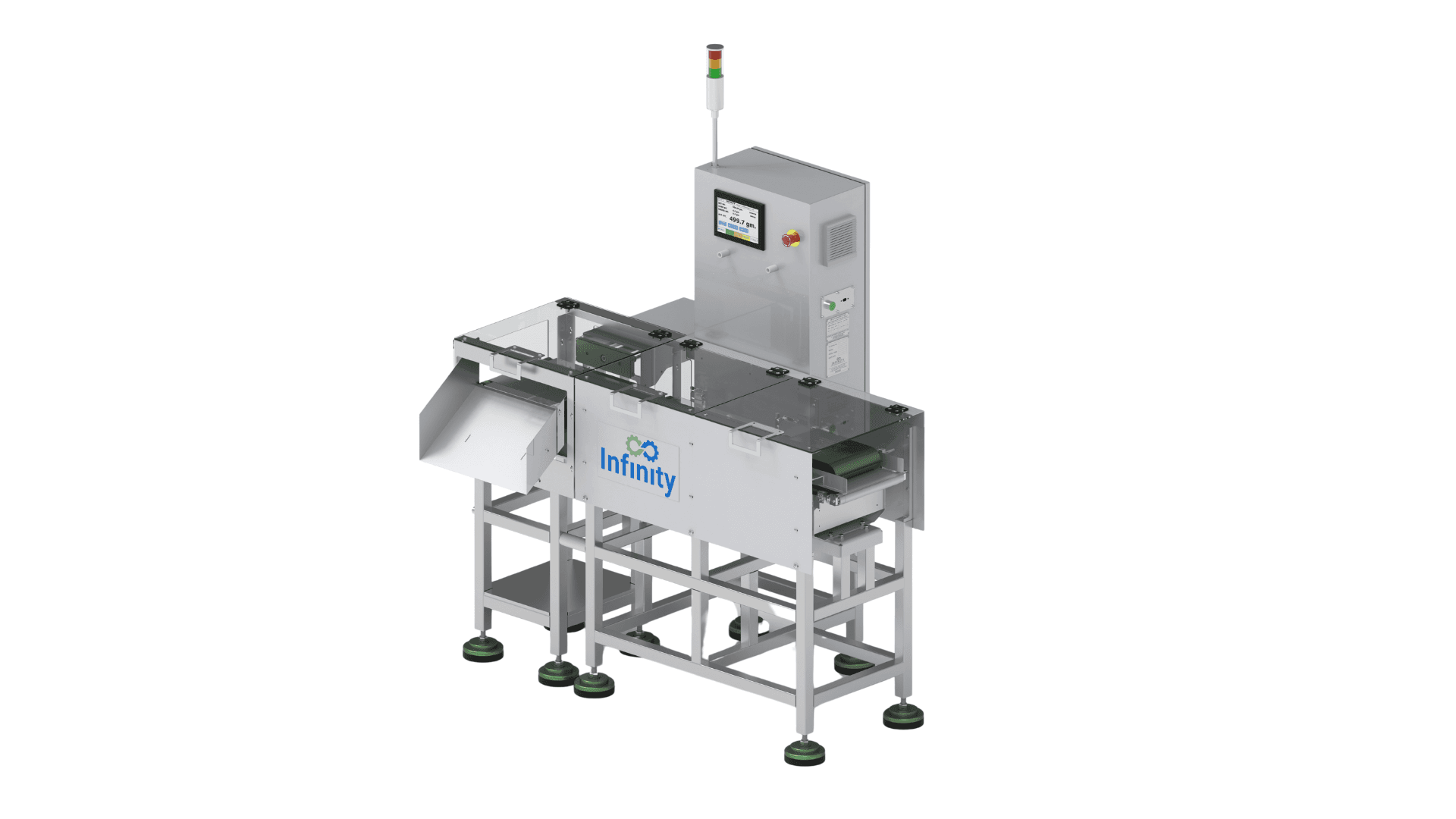

ICW-600 Light Duty Checkweigher
Specifications
Weighing Range50 gm to 600 gm
Weighing Accuracy+/- 0.5 gm
Speedup to 120 PPM
DirectionLeft to right or right to left
Rejection TypeUnderweight or overweight rejection with Diverter/ Pusher/ Air blower/ Skid plate
Power required1 Phase 230V AC/ 50 Hz/ 300 VA
Contact partsSS-304
Non-contact partsMS Powder Coated (can be SS-304)
Weighing sensorscaime /Essae make Load Cell
BearingsSKF, HCH make
Mode of operationPLC based
SensorsP&F, Continex, Autonics, Wangler make
Additional FeaturesAdvanced PLC based control system; 100 product memory (via USB); Helpful graphical user interface; Printer interface; Multi-level user ID and password; Inbuilt report generation; Data sharing via USB or Ethernet; Net weight display; Statistical data available; Tendency control available; Easy height adjustment for conveyor line; Integration with existing production lines; Interlocks with other machines; Wide operating temperature range (0-40°C); Heavy-duty components and high-quality electronics.
Technical Data
performance
Processing Speed120 PPM
Weighing Accuracy±0.5 gm
Weight Range50-600 gm
Throughput Rate99.9 % efficiency
dimensions
Length1500 mm
Width600 mm
Height1200 mm
Net Weight150 kg
power
Power Consumption300 VA
Voltage230V AC 1 Phase
Frequency50 Hz
Protection RatingIP54
